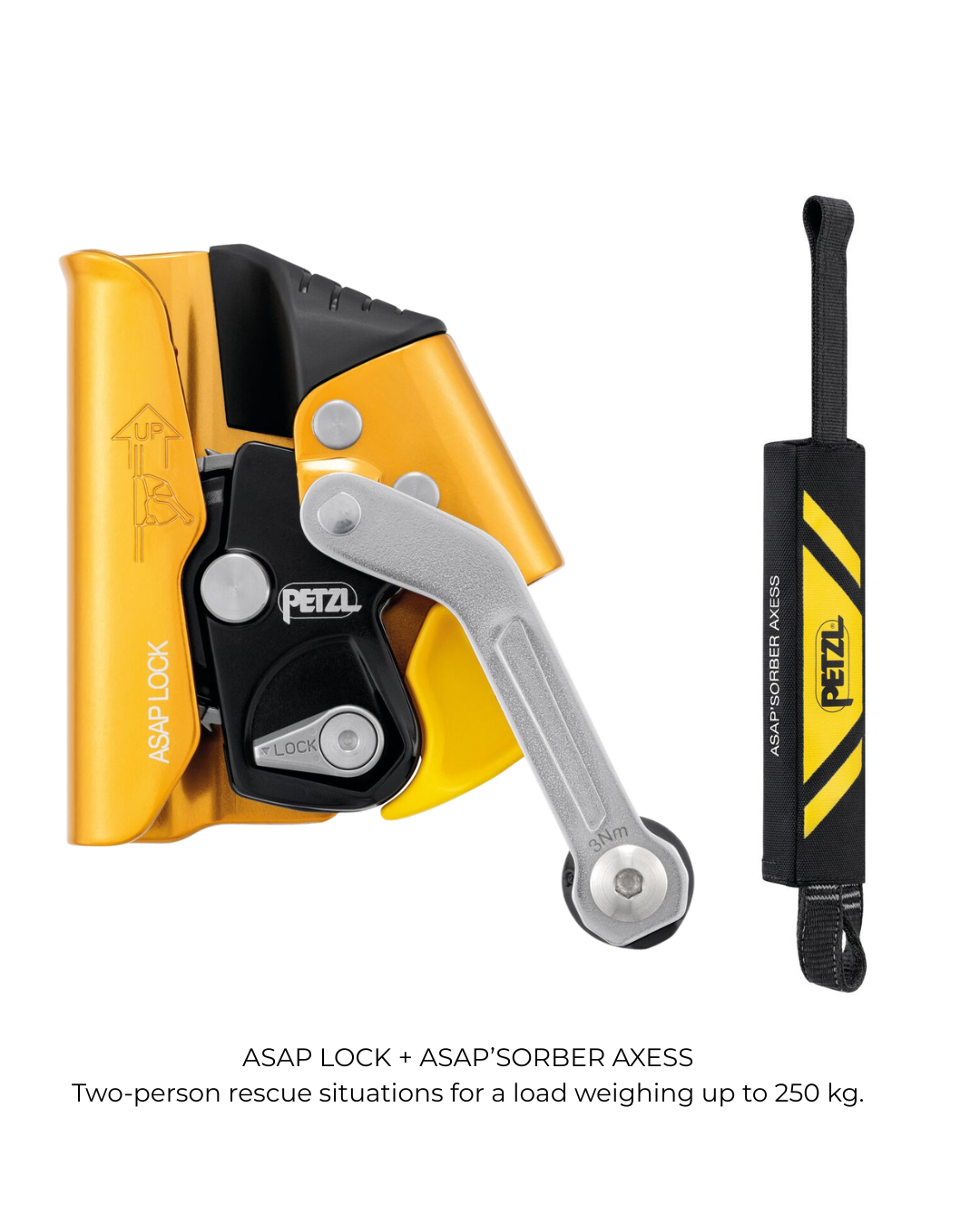

Petzl ASAP Lock + Absorber Axess

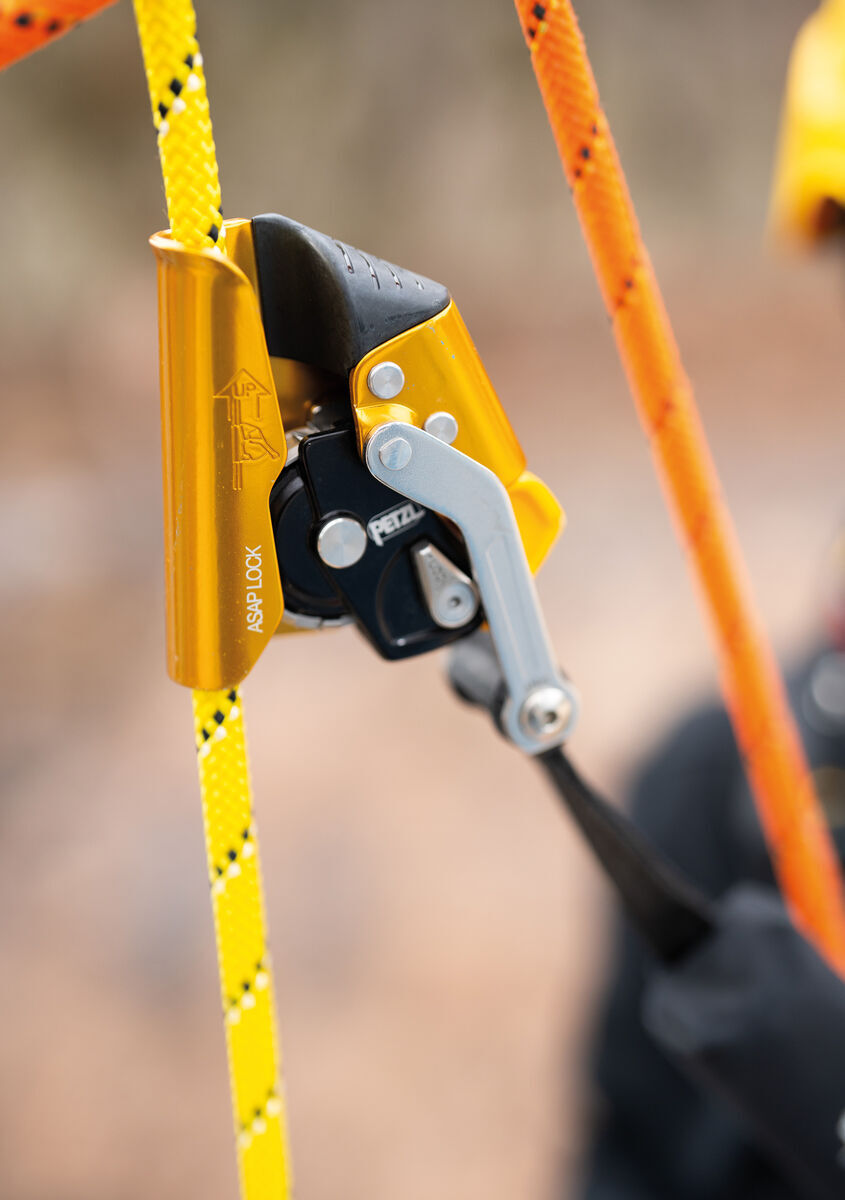

ASAP Lock

Detailed description

Description

  • Constant fall protection:

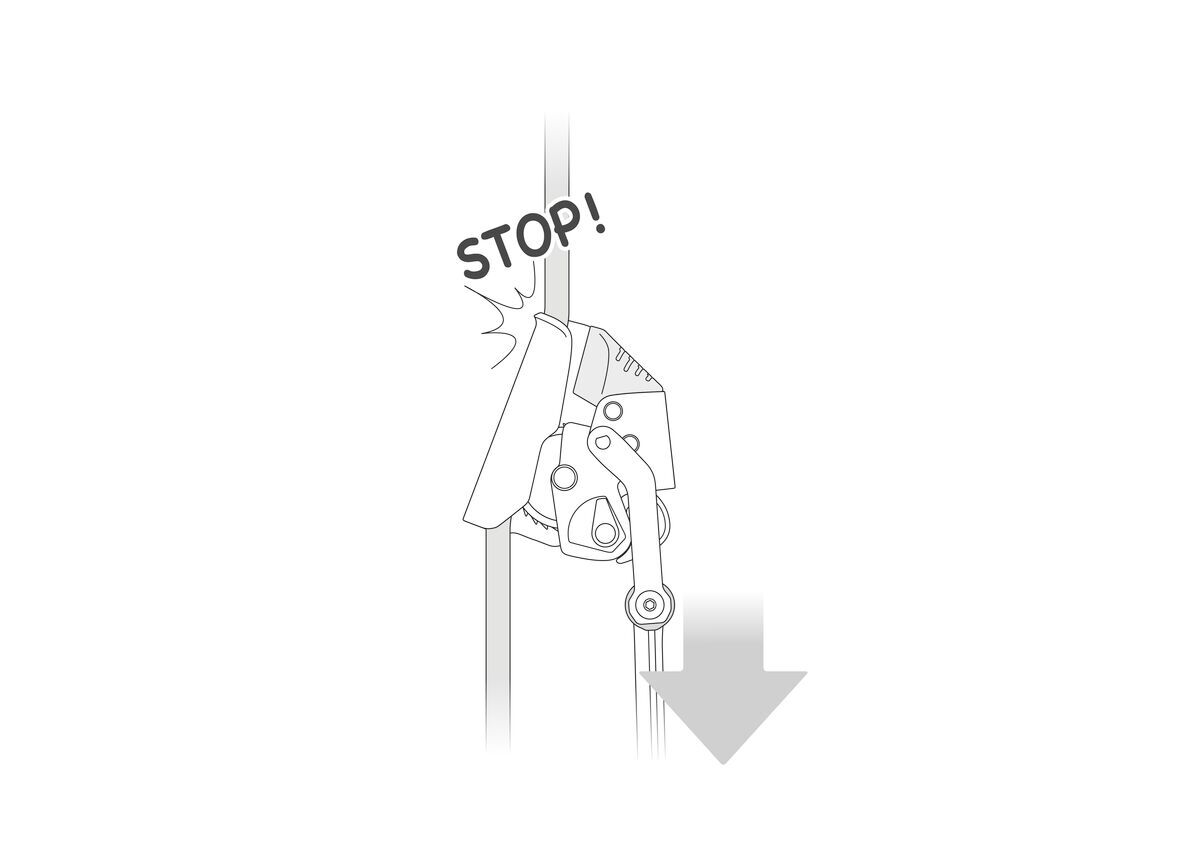

    - arrests falls, slides, and uncontrolled descents
    - works on vertical or angled rope
    - locks on the rope even if grabbed during the fall

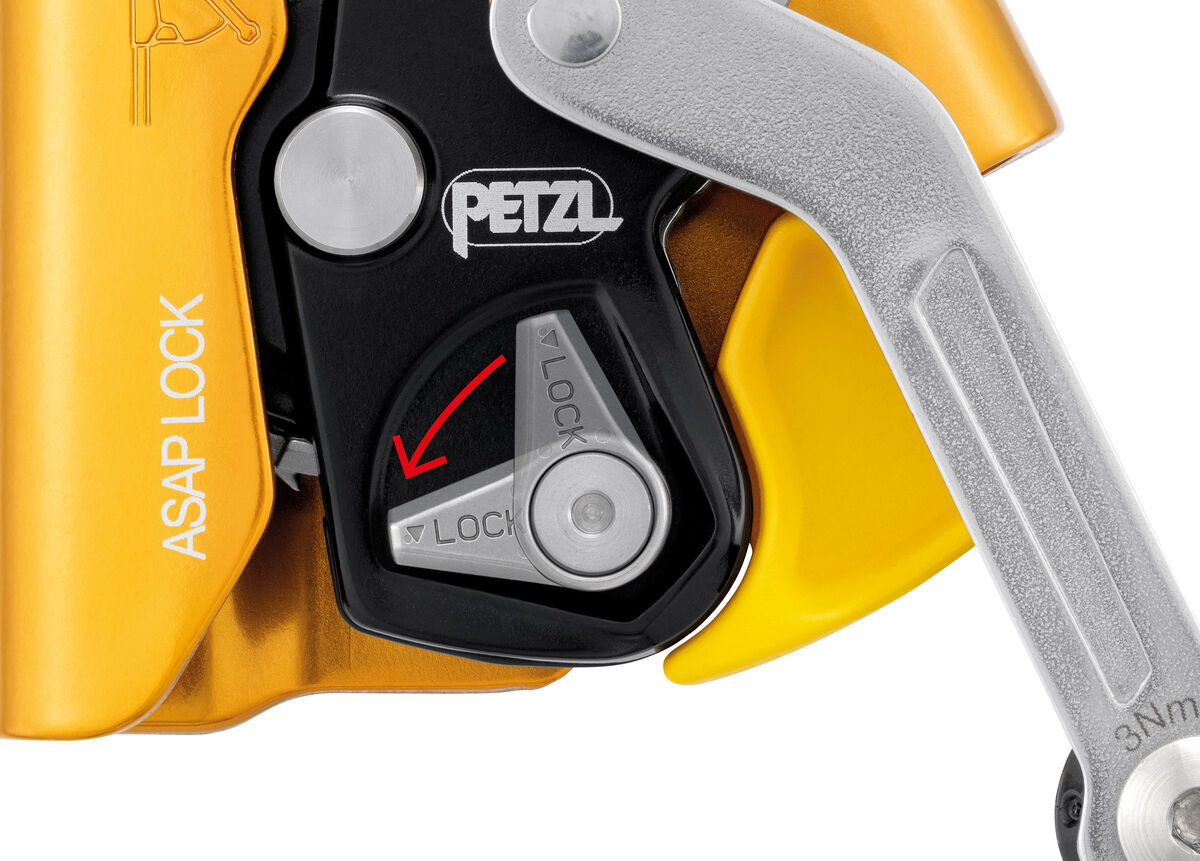

  • Integrated locking function allows the user to immobilize the device in order to reduce the length of a fall. In case of a strong wind, this function also prevents the rope from being blown upward
  • Simple to use, and effective:

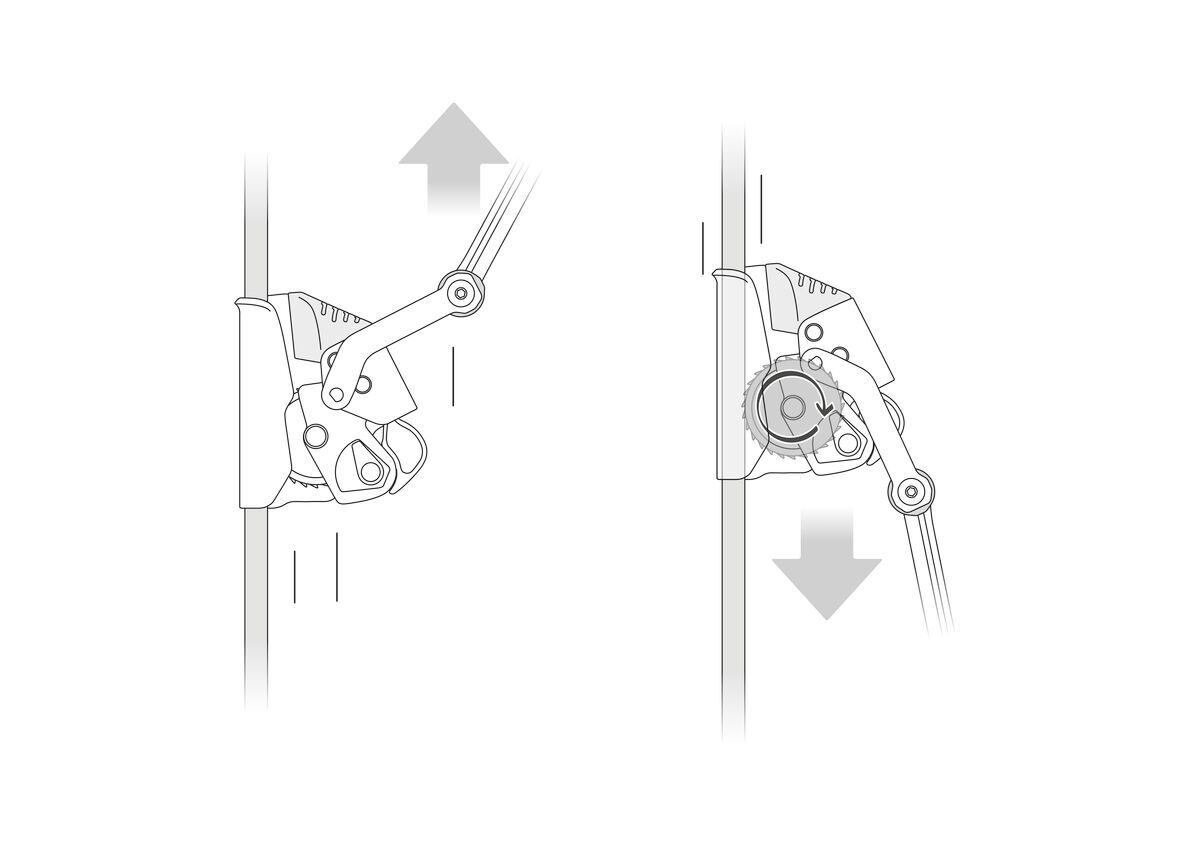

    - moves up or down the rope, without any manual manipulation of the device
    - easy to install and remove at any point on the rope

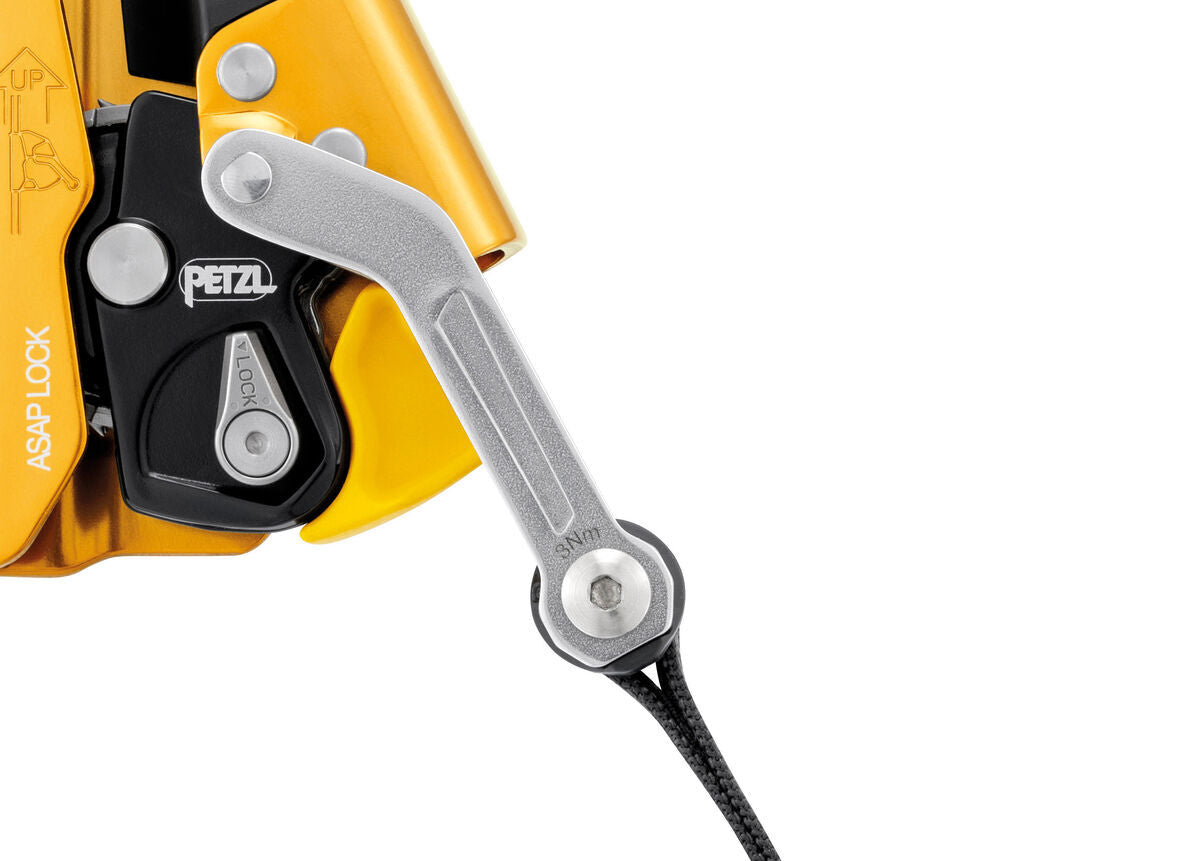

    - connection arm makes the system drop-resistant when passing intermediate anchors

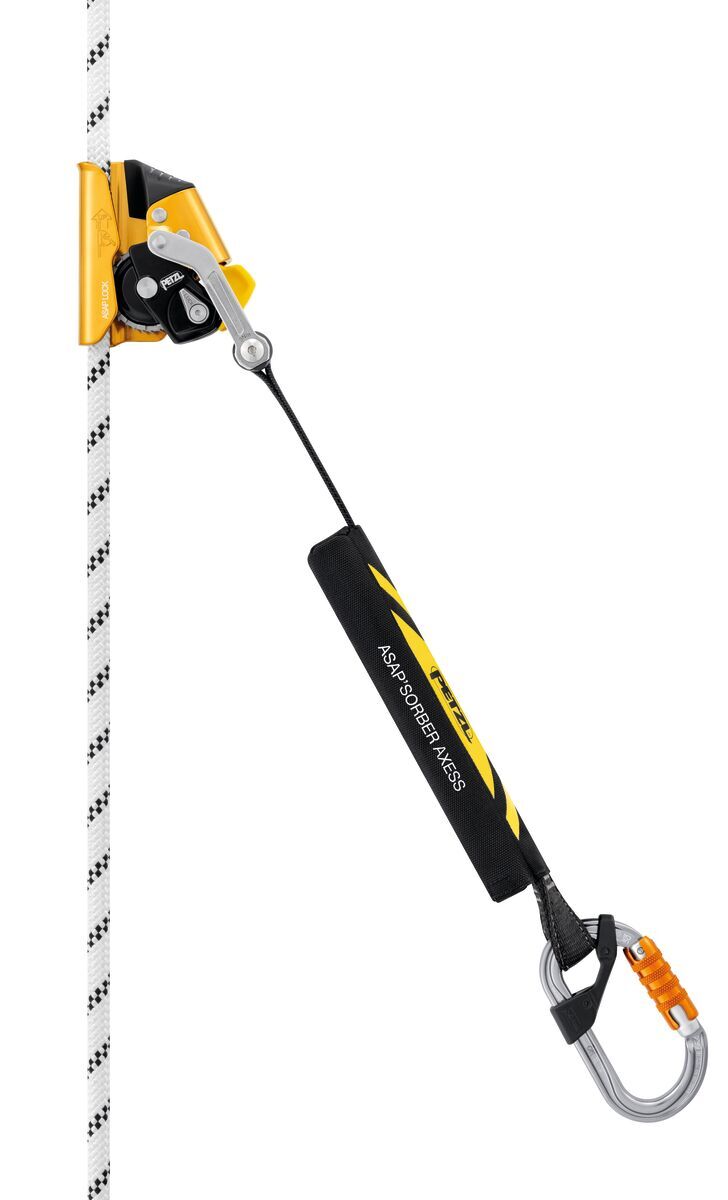

    - used with an energy absorber to work at a distance from the rope: ASAP'SORBER or ASAP'SORBER AXESS. The latter can be used for loads of up to 250 kg in two-person rescue situations

Specifications

  • Material(s): aluminum, stainless steel, nylon
  • Weight: 425 g

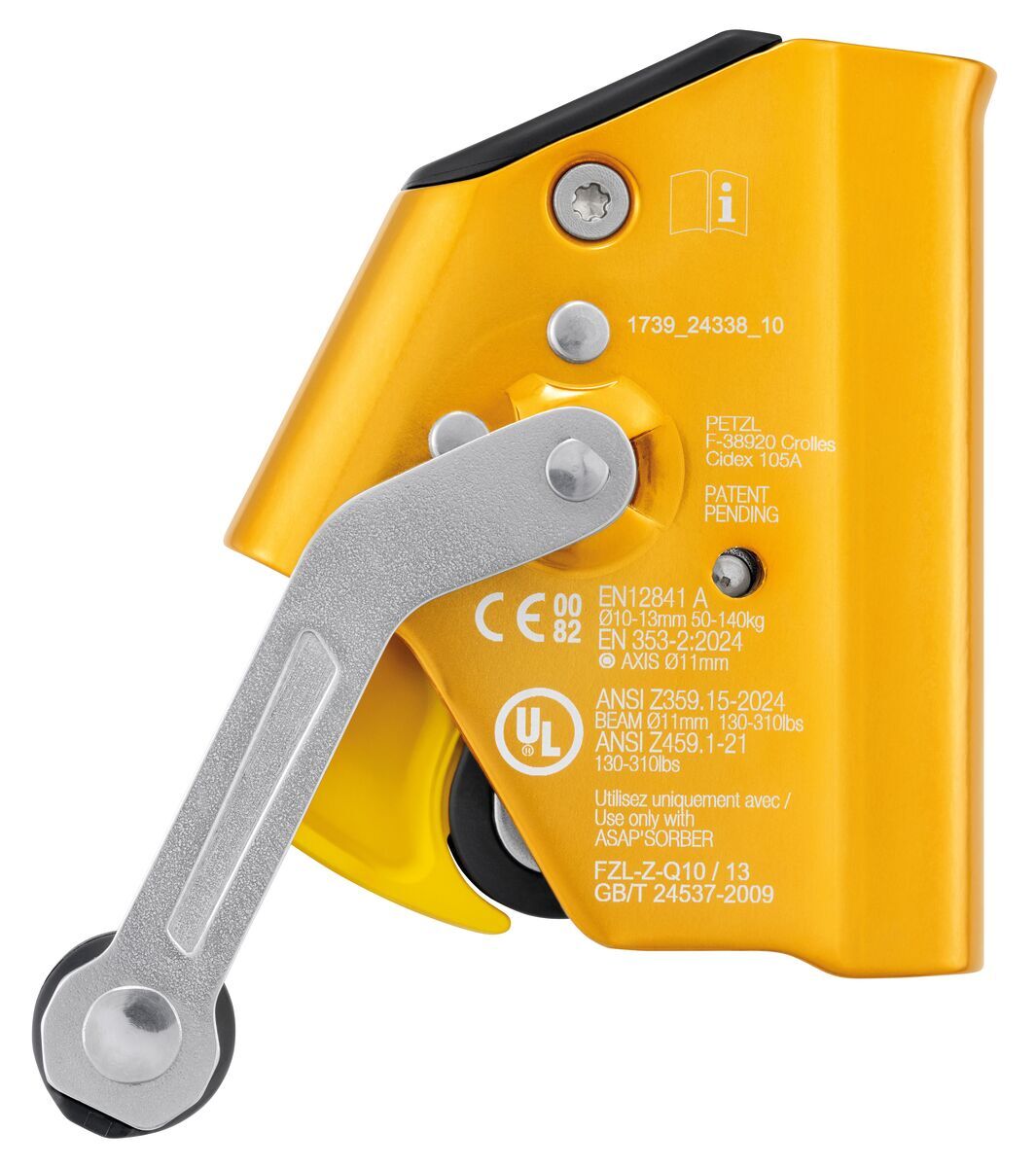

  • Certification(s): CE EN 12841 type A when used with an ASAP’SORBER or ASAP'SORBER AXESS energy absorber, and an EN 1891 type A, 10-13 mm rope
  • Certification(s): CE EN 353-2 when used with an ASAP’SORBER or ASAP'SORBER AXESS energy absorber, and an ASAP'AXIS 11 mm or AXIS 11 mm rope with a sewn termination
  • Certification(s): EAC when used with an ASAP’SORBER or ASAP'SORBER AXESS energy absorber, and an EN 1891 type A, 10-13 mm rope
  • Certification(s): ANSI Z359.15 when used with an ASAP’SORBER or ASAP’SORBER AXESS energy absorber, a Bm’D or OXAN TRIACT-LOCK (international version) carabiner, a CAPTIV positioning bar, and a RAY 12 mm rope



Technical notice 1

Technical notice 2

Declaration Of Conformity 1

Declaration Of Conformity 2

PPE Inspection Procedure

PPE Checklist

ASAP'SORBER AXESS

Detailed description

Description

  • May only be used with an ASAP or ASAP LOCK mobile fall arrester
  • Allows the user to keep the rope at a distance in order to:
    - free up the work area
    - protect the rope from sharp tools and harmful contact points
  • Absorbs energy in case of a fall:
    - tearing of the energy absorber webbing limits the impact force on the user
    - designed for users who weigh between 50 and 130 kg Can be used for loads of up to 250 kg in two-person rescue situations
    - durable fabric pouch with opening system at each end, protects the energy absorber from abrasion or contaminants while allowing for regular inspection of the absorber
  • Ends equipped with STRING to hold the connector in position and protect the webbing from abrasion

Specifications

  • Material(s): nylon, polyester
  • Certification(s): CE EN 355, ANSI Z359.13 6 feet

References

Length 40 cm
Weight 205 g
Guarantee 3 years
Inner pack count 1

Technical Notice Absorber Axess 1

Technical Notice Absorber Axess 2

Absorber Axess Declaration Of Conformity 1

PPE Inspection Procedure Absorber Axess

PPE Checklist Absorber Axess

Tips for maintaining your equipment
