Rope protection for steel grid mesh! Pair (for upper and lower surface of mesh)
Mac-pro has been developed, tested and made in Australia. Using a heavy duty and robust nylon compound for protection against sharp edges, rope wear and high surface temperatures. The mac-pro provides a smooth edge for a rope path, providing edge protection whilst threaded through the aperture of typical steel grid-mesh. Mac-pros can be used a range of applications including:
Individually serial numbered for easy kit allocation.
Throat: 40mm L x 20mm W x 40mm D
Plate: 70mm x 55mm x 4mm
Supplied as a pair, with 2 x 380mm tie cords.
Weight: 40 grams each
THE MAC-PRO FITS MOST INDUSTRIAL STEEL GRID MESH

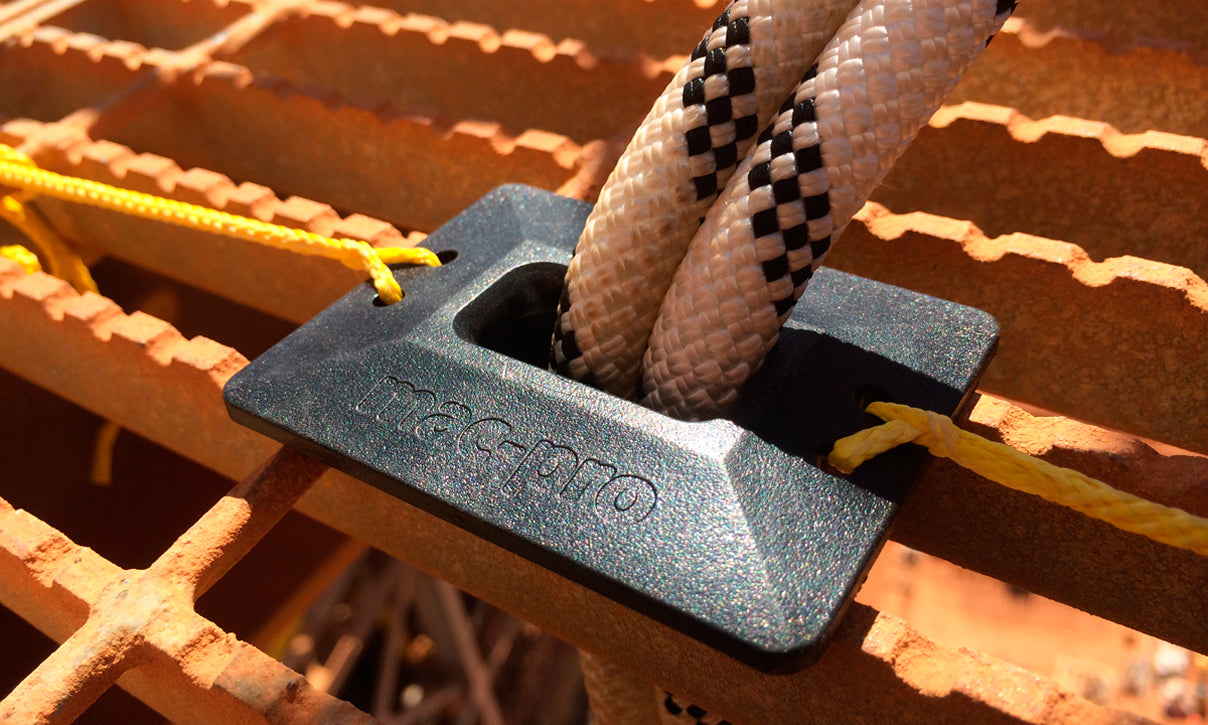

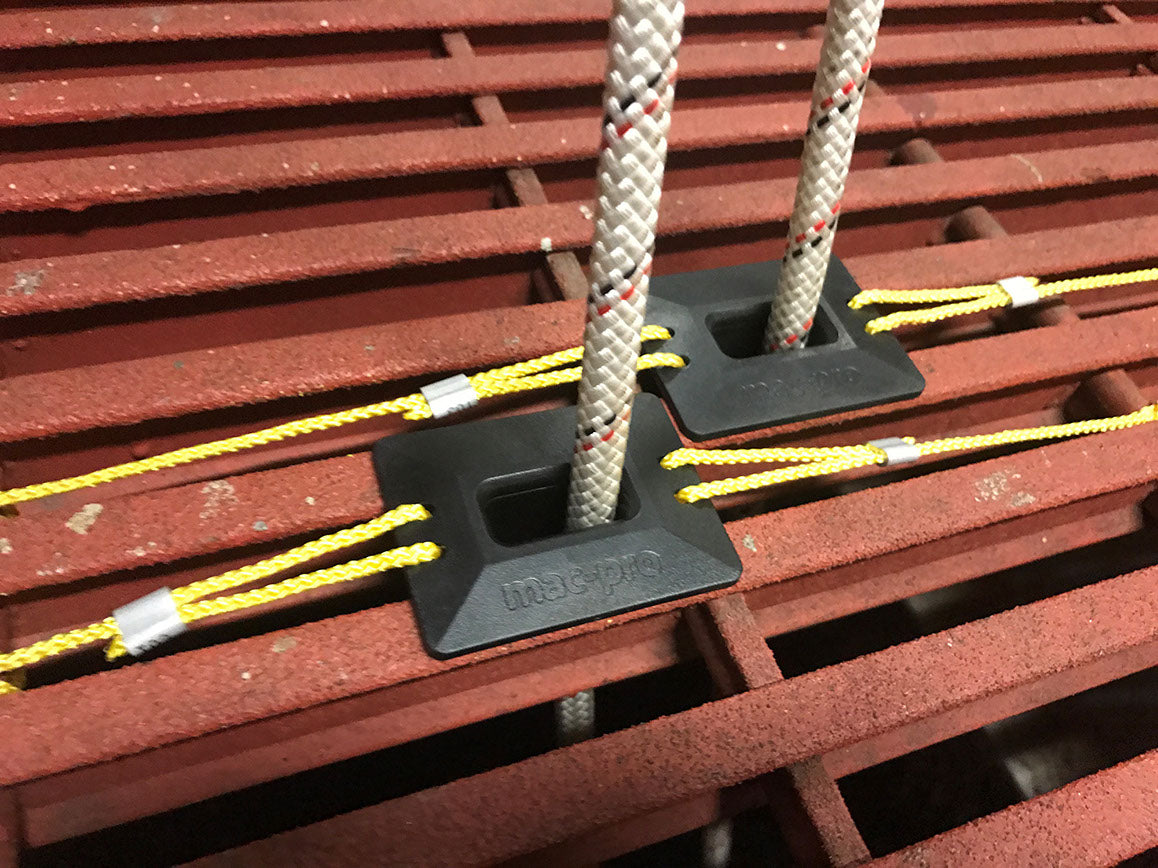

They can fit one or two 11mm or 13mm industrial static kernmantle ropes, making feeding ropes through grid mesh and retrieving them a quick and simple exercise.

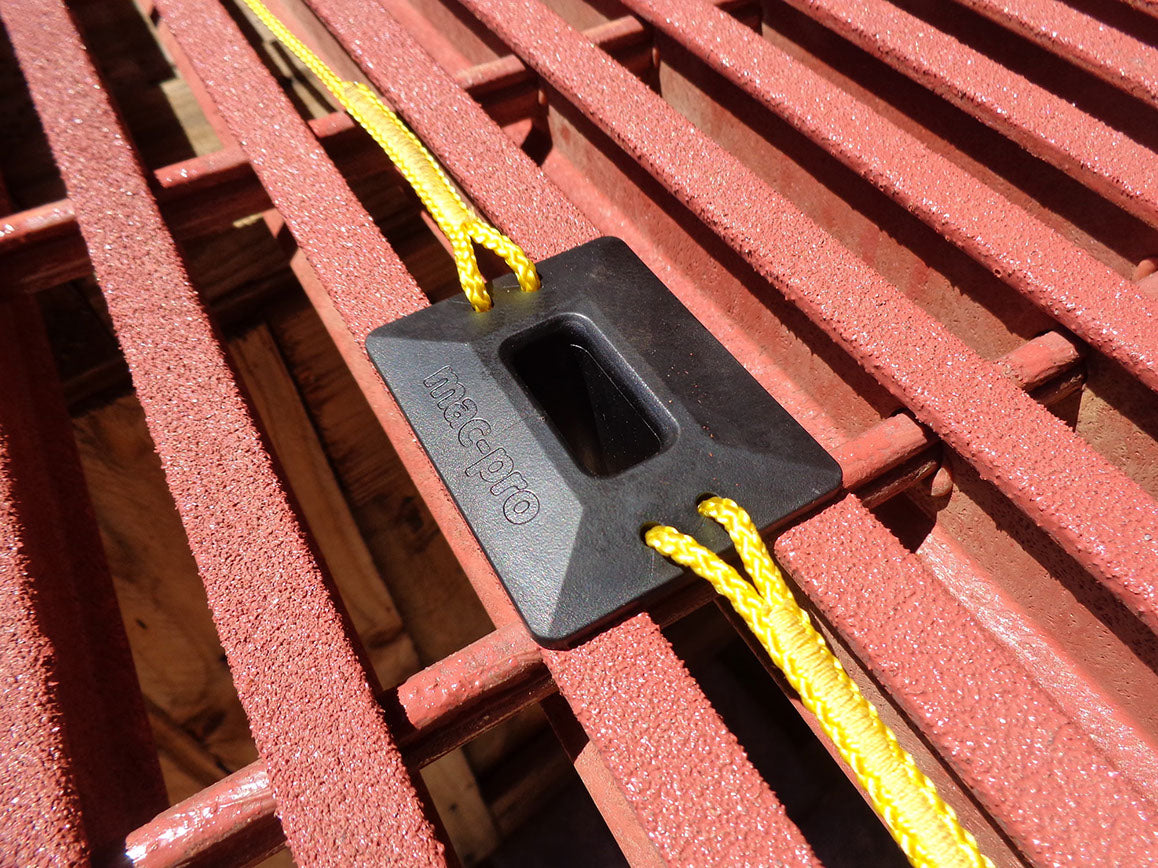

The protector can be secured to the grid mesh with the supplied cord to prevent it becoming a dropped object.
temperature of 170˚C
Extremely high protection against UV degradation
High density nylon to prevent material crushing
High wear resistance facilitating lowering off personnel in emergency scenarios
1) Please note the mac-pro is not a friction modifier device and should not be used in extreme friction scenarios.
2) While the mac-pro is structurally sound enough to handle a 90 degree deviation, the grid mesh you are using might not be, ropes should be vertical before passing through the mac-pro when possible.
3) mac-pros are designed and tested for use with static kernmantle ropes only. The use of flexible steel wire ropes in conjunction with the mac-pro is not recommended and should not be undertaken.
