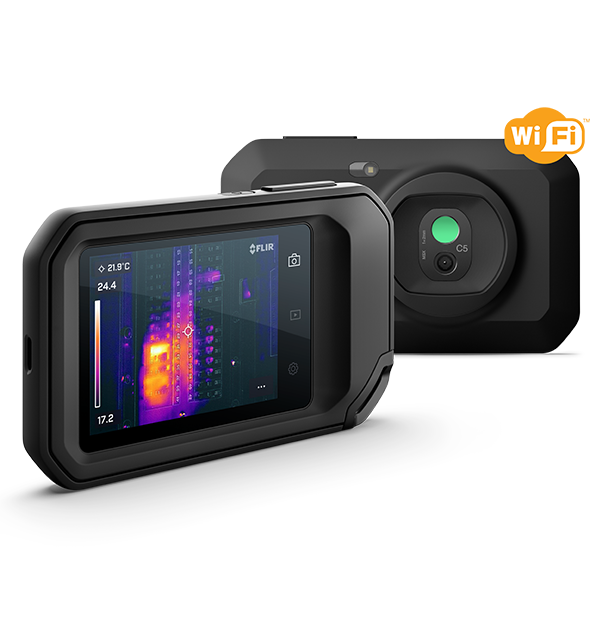

FLIR C5 Ultra-Portable Thermal Imager With Wifi

The FLIR C5 is a rugged and compact thermal imaging camera. Here's why it's a great value thermal camera:

Easy to Use. The FLIR C5 has an easy to use 3.5-inch touch screen. It also incorporates a standard tripod mount and a bright LED flashlight.

Quality Thermal Images. At 19,200 thermal pixels, the FLIR C5 offers 56% more thermal resolution than the FLIR C3-X. A separate higher-resolution visual camera adds even more clarity to the thermal images.

Automatic Image Backup. The FLIR C5 is Wifi and Bluetooth enabled and can automatically back up your images to FLIR's free Ignite cloud storage.

Rugged Design. The FLIR C5 is built to survive a 2m drop and carries an IP54 rating for protection against dust and water spray.

Easily Detect Faults & Issues - FLIR C5

The compact design of the FLIR C5 means you'll always have a thermal camera nearby. You can use it to troubleshoot electrical, mechanical, plumbing and other issues. Here are some example applications:

  • Building inspection - pest control, energy auditing, and more.
  • Electrical repair - inspect switchboards and find hot fuses before they fail.
  • Facilities maintenance - detect water ingress, mould, and other moisture issues.
  • HVAC inspection - locate air leaks, missing insulation, and other issues with Heating, Ventilation & Air Conditioning systems.


FLIR C5 Features

The FLIR C5 includes the very best of FLIR's thermal imaging technology at an affordable price.

MSX Images. The FLIR C5 has a 160 x 120-pixel true thermal detector with Multi-Spectral Imaging (MSX) technology. MSX images blend the thermal image with a visual image for industry-leading high clarity images.

1-Touch Level/Span. The FLIR C5 includes a new 'one-touch' automatic image adjustment feature. No need to manually adjust numerous settings - just tap the screen in your area of interest.

Add Notes & Share Securely. You can add notes to images on the camera, while still on site. You can also share password-protected photos with your colleagues or clients on FLIR's included Ignite cloud platform.

Create Professional Reports. Images from the FLIR C5 can also be uploaded to FLIR's reporting programs such as FLIR Tools or FLIR Thermal Studio.

FLIR C5 - Specifications

Temperature Range -20°C to 400°C
Resolution Thermal image: 160 × 120 (19,200 measurement pixels)
Thermal Sensitivity < 0.07°C
Wi-Fi Yes (2.4 and 5 GHz)
Field of View 54° × 42°
Min Focal Distance Thermal: 0.1m, MSX: 0.3m
Display 3.5 inch colour touch screen
Measurement Modes Spot meter, Area min or max
Image modes Infrared image, Visual image, MSX (visual-thermal blend), Picture-in-picture (IR area on visual image)
Emissivity Correction Yes - preselect or custom value
Colour Palettes Iron, Rainbow, Rainbow HC, Gray, Arctic, Lava
Image Storage Internal (greater than 5,000 images), plus free 1GB FLIR ignite cloud storage.
Image Type Standard JPEG image with embedded temperature data ('radiometric image')
Connector Type USB 2.0 Type-C connector (included with camera)
Battery Internal rechargeable lithium battery with 4 hour operating time.
Weight 190 grams
Dimensions 138mm x 84mm x 24mm
Further Info Spec Sheet (PDF), User Manual (PDF), Part Number: 89401-0202, Barcode: 845188021832
Warranty 2 Year Product, 10 Year Detector
