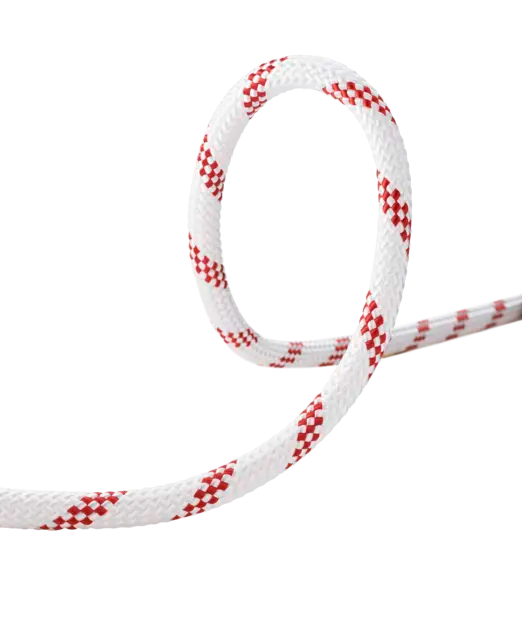

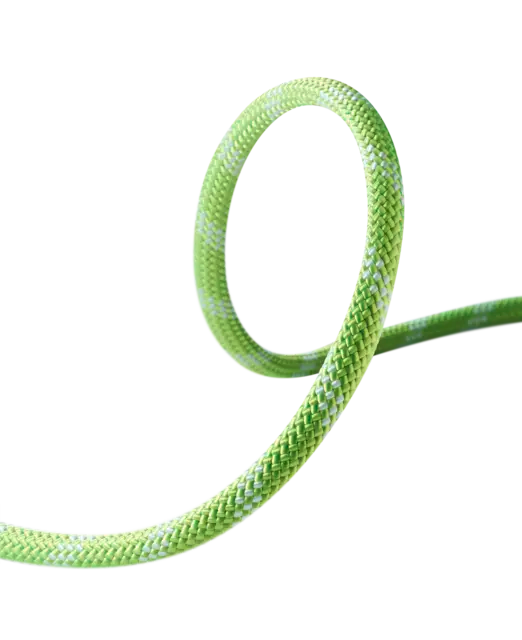

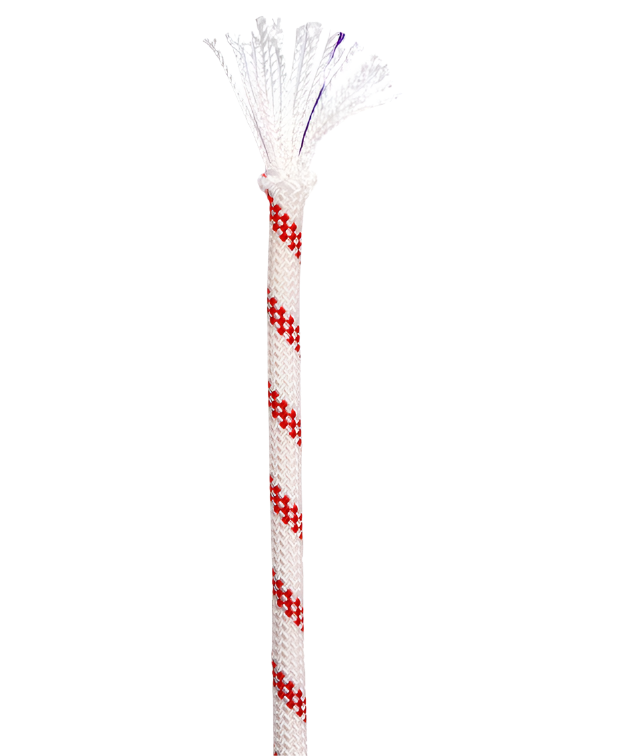

The number one choice for precise work off ropes. The minimum elongation enables the effortless climbing of the rope making it an ideal companion when working at heights. The low residual elongation furthermore enables precise work when rigging (rescue) loads and during work positioning. Diameter: 11.0 mm.

PRODUCT INFORMATION

• Multiple-wound polyester sheath results in elongation values of less than 2% for greater precision when working
• Conforms to safety certification for static ropes (EN 1891 Type A)
• Thermo Shield treatment for perfect handling
• Tracer threads on the sheath to indicate rope diameter
• High abrasion and cut resistance

TECHNICAL INFORMATION

• Load capacity Figure of Eight [Kn]: 20
• Diameter [mm]: 11,00
• Core proportion [%]: 56,00
• Knotability: 0,90
• Sheath proportion [%]: 44,00
• Weight [g/m]: 82,00
• Shrinkage H20 [%]: 2,20
• Static elongation [%]: 1.8000
• Load capacity [Kn]: 35
• CE marking: CE 0123
• country of origin: Germany

INSPECTION INSTRUCTION

https://media.edelrid.de/images/attribut/EN_1891.pdf

https://media.edelrid.de/images/attribut/Pruefanweisung_Seil.pdf

User instructions

https://media.edelrid.de/images/attribut/54518_GAL_Static_Ropes_ANSICHT.pdf
